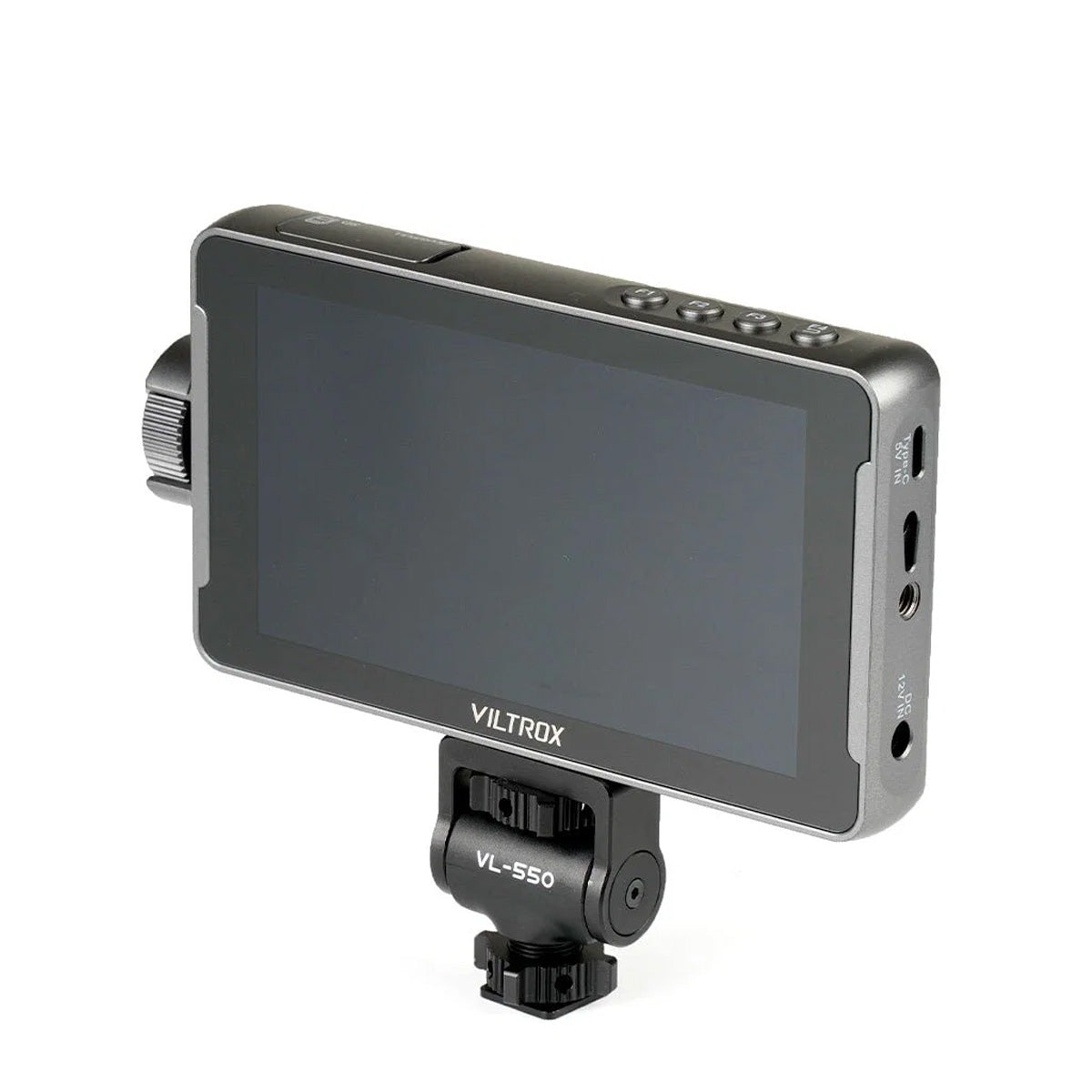

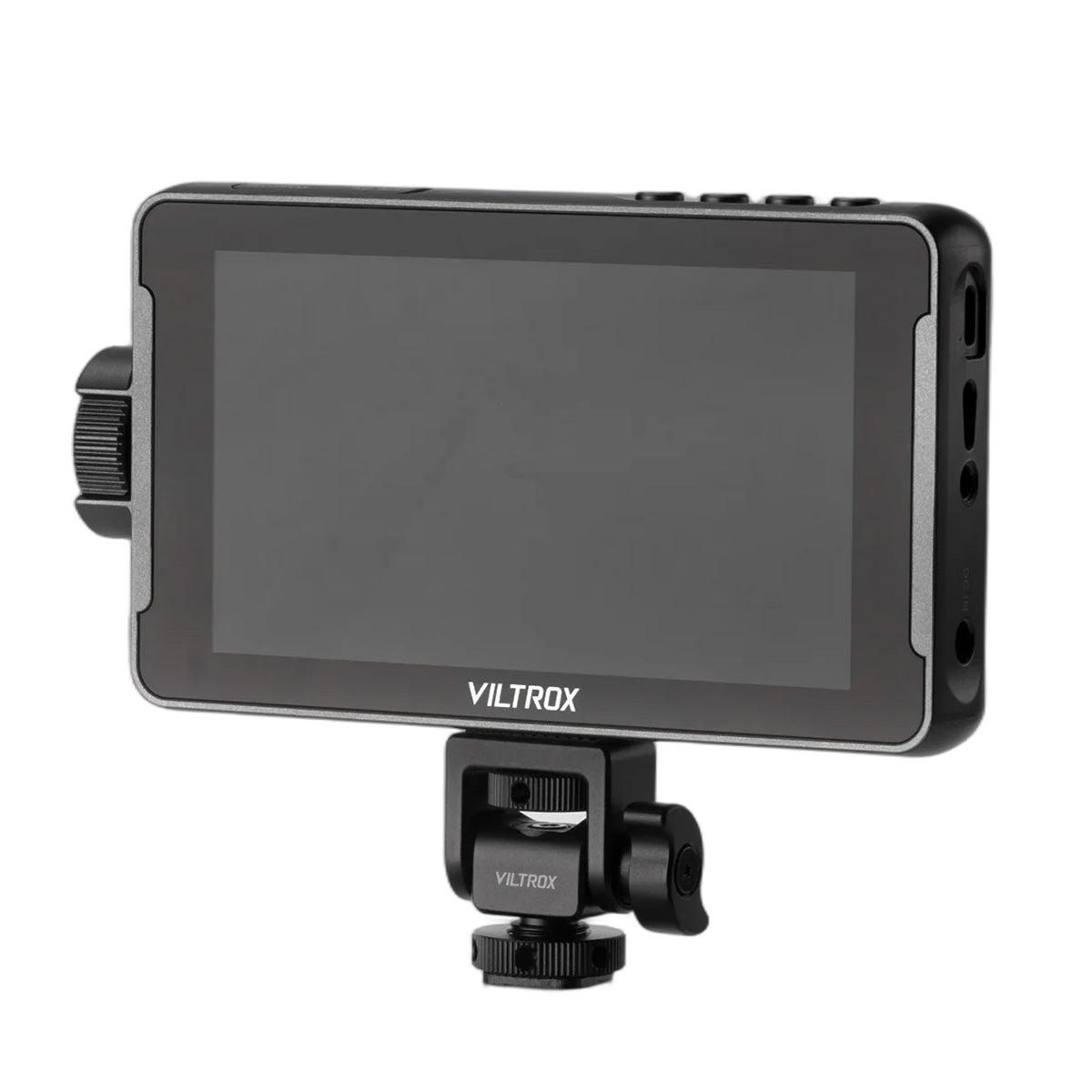

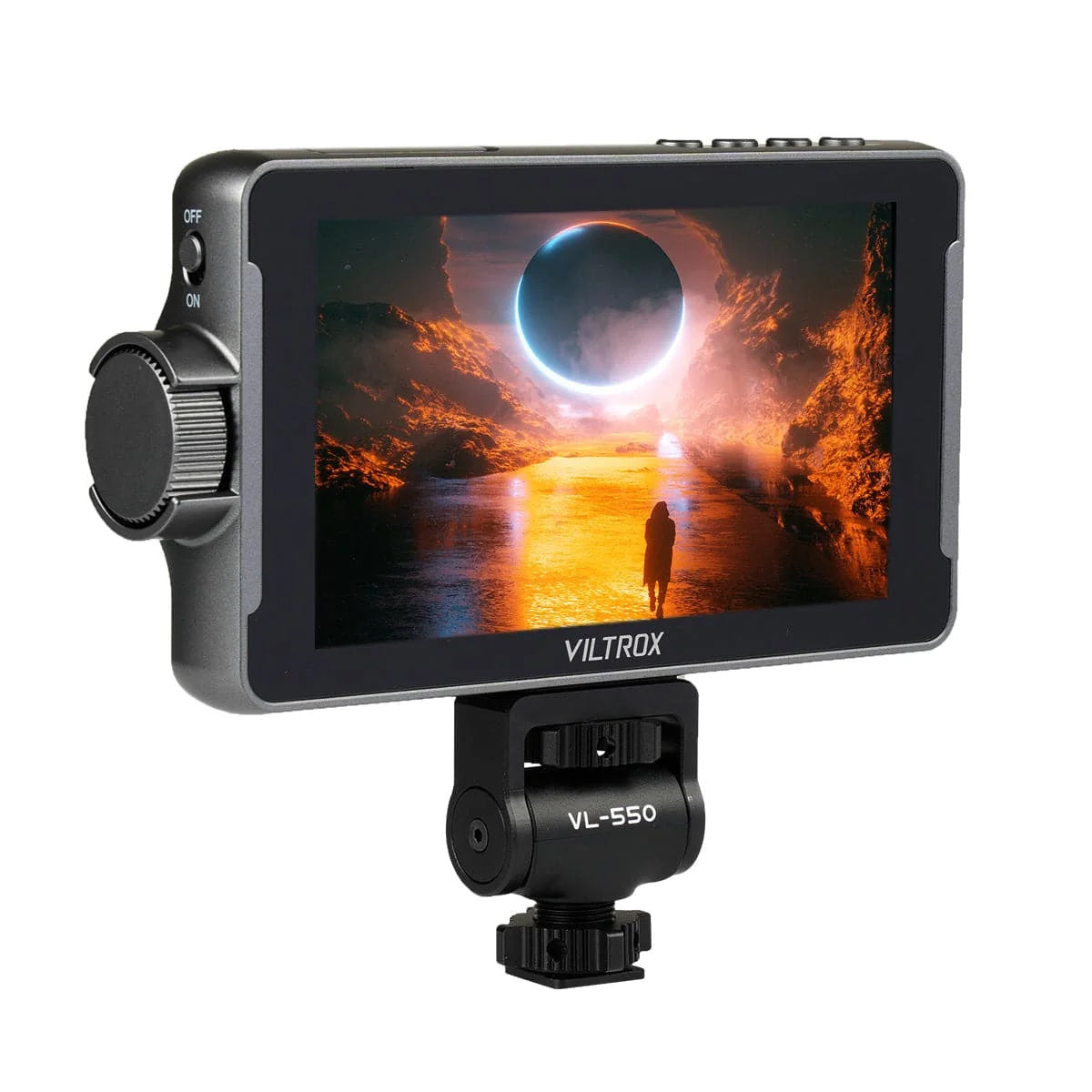

Viltrox DC-550 Pro II 5.5 Inch 1400-Nit Full HD Touchscreen Camera Monitor with 4K 60Hz HDMI

Take greater control of your photography and video production with the Viltrox DC-550 Pro II 5.5-inch HD Camera Monitor. Designed for filmmakers, photographers and content creators, this professional on-camera monitor combines a bright 1400-nit Full HD IPS touchscreen with advanced monitoring tools, HDMI 2.0 connectivity and flexible power options.

The 5.5-inch 1920 × 1080 display provides a clear, detailed view of your camera's HDMI signal, while the 1400-nit brightness and 160° viewing angle make it suitable for monitoring in bright outdoor environments. HDMI 2.0 input and output support video signals up to 4K at 60Hz, allowing the monitor to display high-resolution footage while also passing the signal through to compatible equipment.

The DC-550 Pro II introduces enhanced camera control functionality, allowing supported camera settings such as shutter speed, aperture, ISO, white balance, exposure compensation, focus mode and focus area to be accessed through the monitor when connected via compatible USB or wireless connections. A responsive full-screen touchscreen, precision control dial and customisable F1, F2 and F3 shortcut keys provide quick access to frequently used functions.

Advanced monitoring tools include waveform, histogram, RGB parade, vectorscope, false colour, zebra patterns and focus peaking, helping creators evaluate exposure, focus and colour more accurately while shooting. Custom 3D LUTs can be imported using an SD card for real-time colour grading previews, while the new Onion Skin function allows captured frames to be overlaid on the live image for composition reference and motion comparison.

With custom anamorphic de-squeeze, image flip, pixel-to-pixel viewing, monochrome mode, built-in gyroscope and multiple aspect-ratio and composition guides, the Viltrox DC-550 Pro II is a versatile monitoring solution for professional video production, photography and on-location content creation.

Key Features:

• 5.5-inch Full HD IPS touchscreen display with 1920 × 1080 resolution
• 1400-nit high-brightness display for improved outdoor monitoring
• 160° viewing angle for flexible monitoring from different positions
• HDMI 2.0 input and output supporting signals up to 4K at 60Hz
• Real-time 3D LUT preview for on-set colour grading and creative monitoring
• Custom 3D LUT import via SD card
• Enhanced camera control via compatible USB or Wi-Fi connections

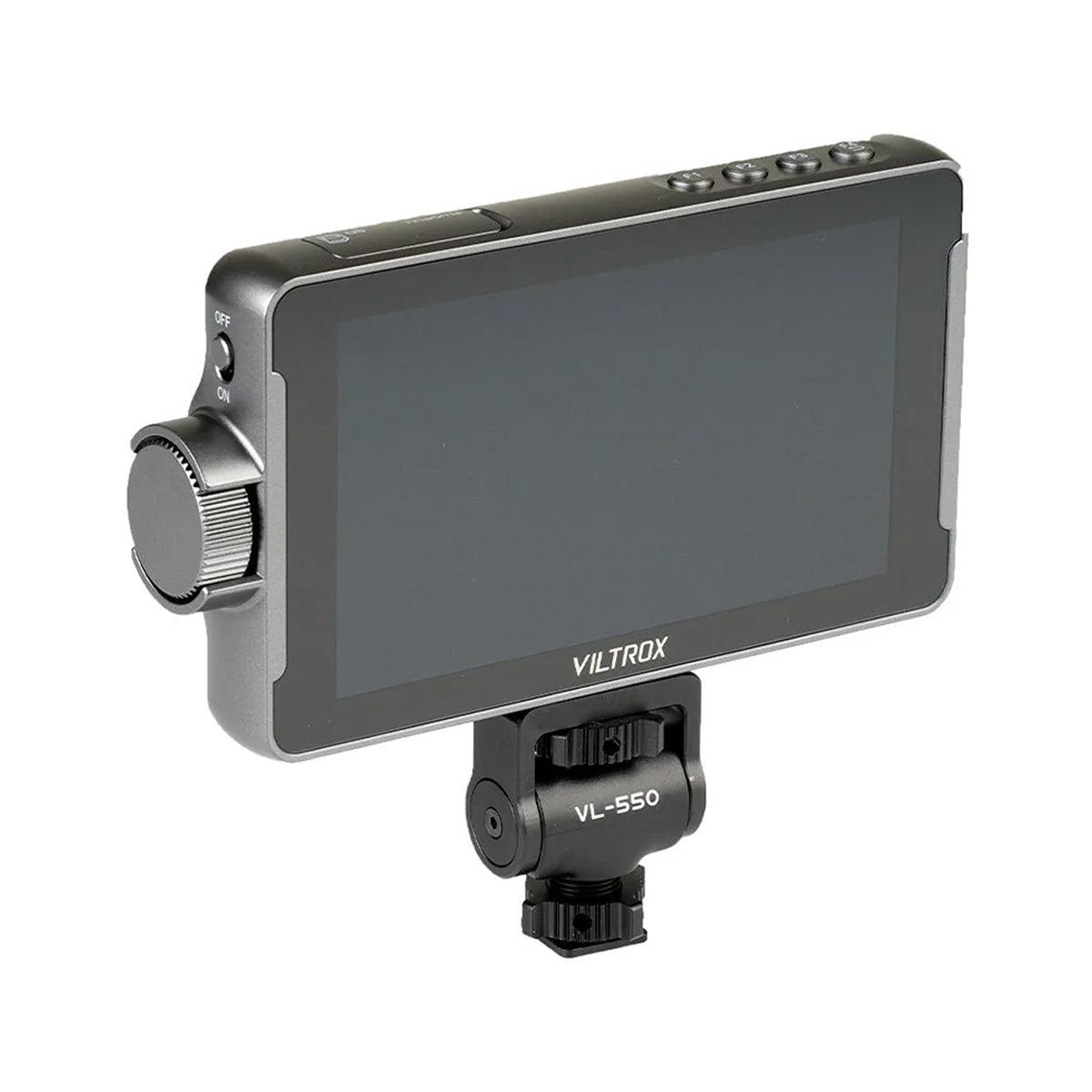

• Touchscreen interface with precision side control dial

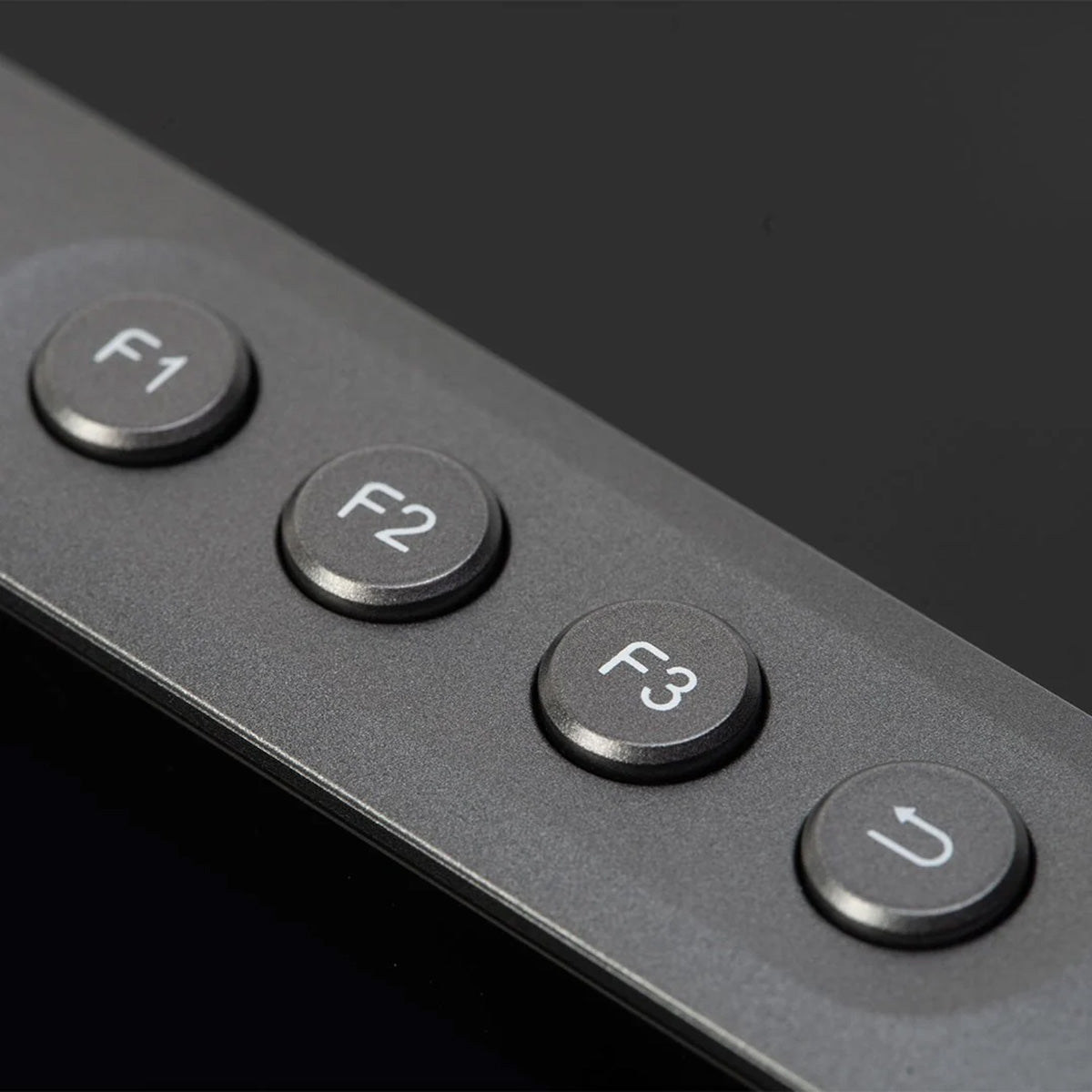

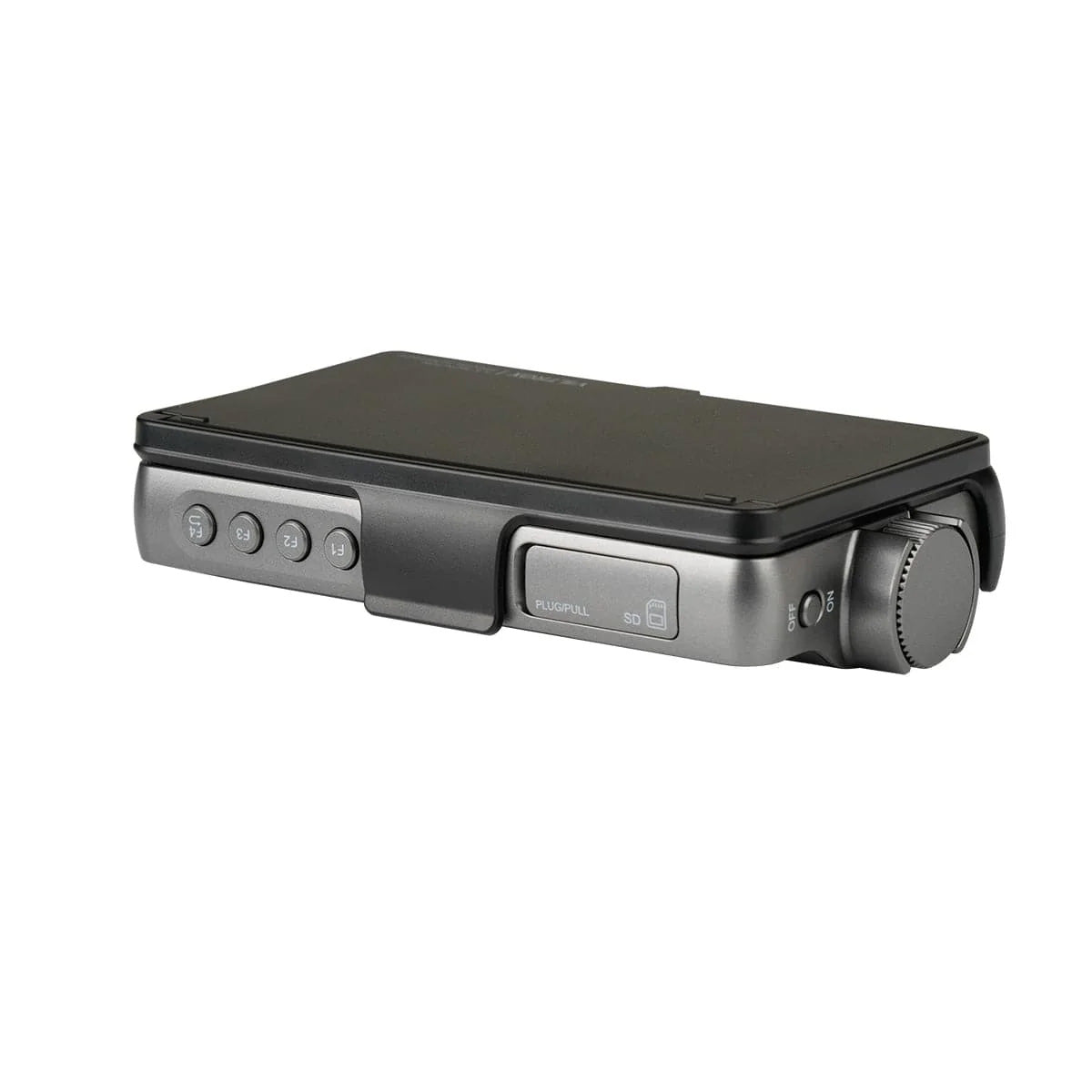

• Customisable F1, F2 and F3 shortcut keys
• Onion Skin function for composition reference and motion comparison
• Waveform, histogram, RGB parade and vectorscope monitoring tools
• False colour and zebra pattern exposure monitoring
• Focus peaking for improved manual focusing accuracy
• Custom anamorphic de-squeeze with multiple preset ratios
• Pixel-to-pixel viewing and image freeze functions
• Built-in gyroscope for automatic image orientation detection
• 0°, 180° image flip and 0°, 90°, 180° and 270° menu rotation
• Rec.709 colour standard for consistent colour monitoring
• SD card slot for LUT import and firmware updates
• 3.5mm headphone output for audio monitoring

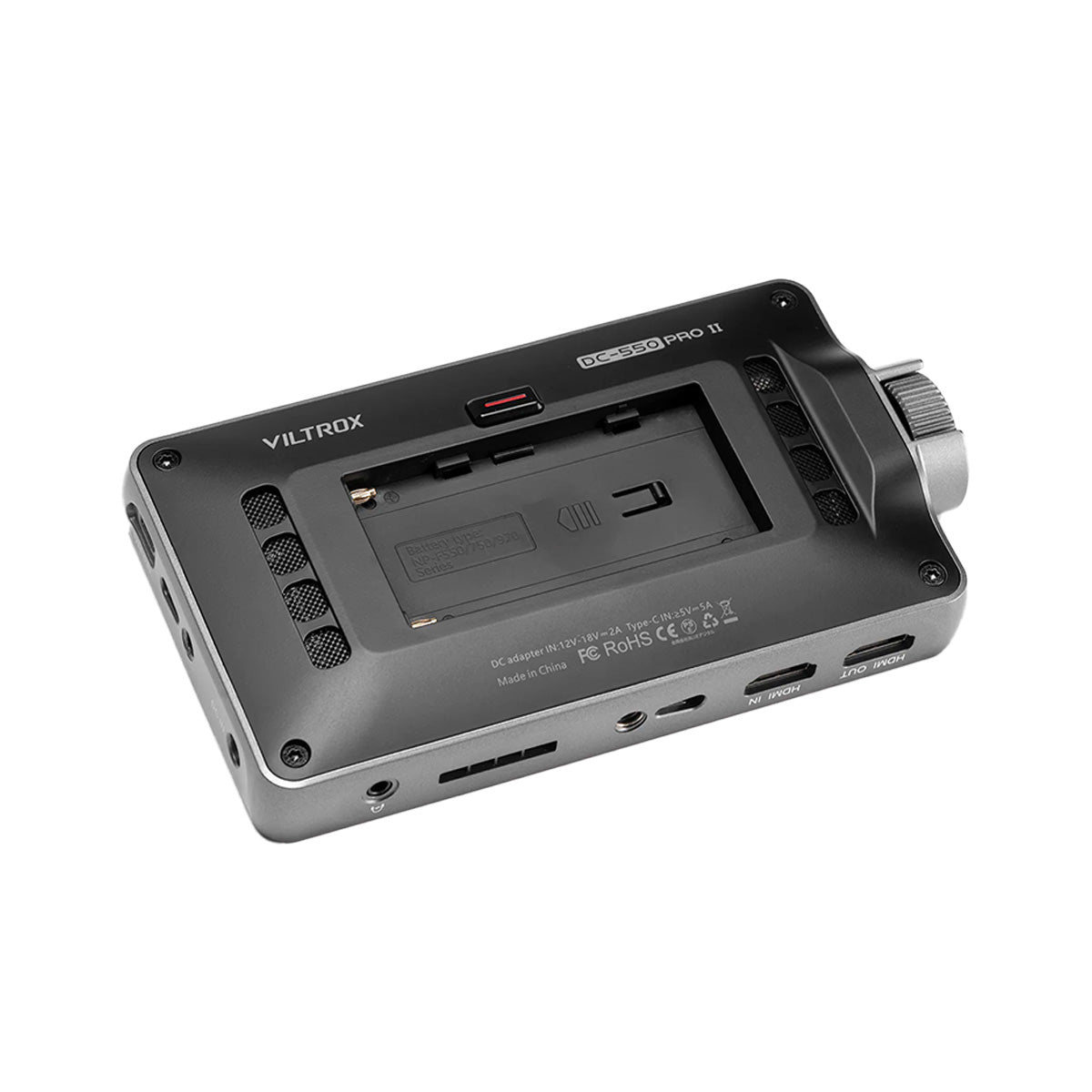

• Multiple power options including NP-F batteries, DC input and USB-C
• Compatible with NP-F550, F570, F750, F770, F960 and F970 batteries
• Integrated ventilation system for heat management during extended use

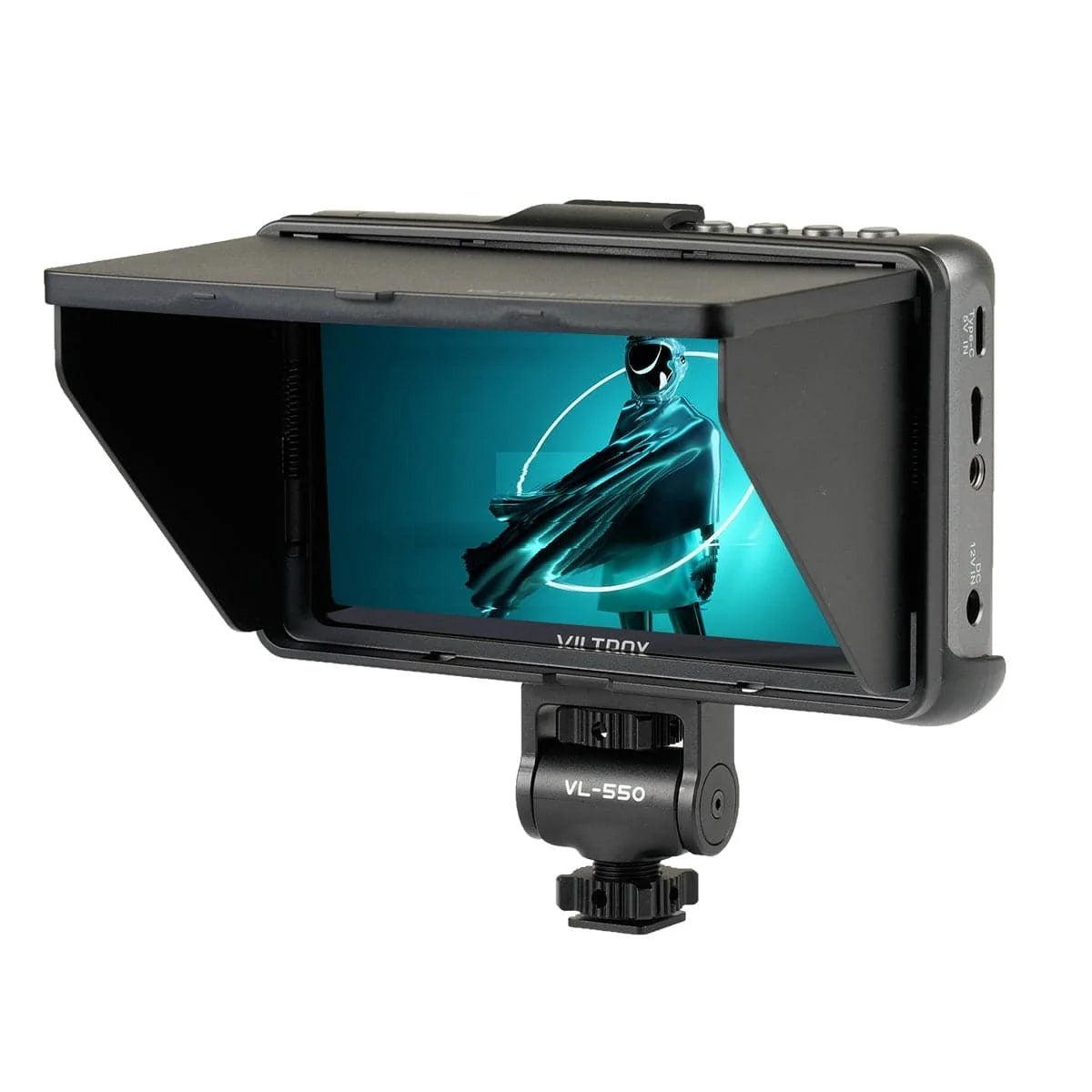

• Quick-release sun hood helps reduce glare in bright environments
• Aluminium construction for a durable yet portable design
• Suitable for filmmaking, photography, studio production and on-location shooting

Compatibility:

Camera Connection:

Compatible with cameras and video equipment providing a supported HDMI video output. Camera control functionality is dependent on the connected camera, connection method and supported camera functions.

Supported Video Signals:

• HDMI 2.0 input and output
• DCI 4K: 4096 × 2160 at up to 60Hz
• UHD 4K: 3840 × 2160 at up to 60Hz
• Full HD 1920 × 1080
• HD 1280 × 720

Compatible Batteries:

• NP-F550
• NP-F570
• NP-F750
• NP-F770
• NP-F960
• NP-F970

The monitor supports camera control through compatible USB-C or Wi-Fi connections; available functions vary depending on the connected camera and its firmware.

Specifications:

• Screen size: 5.5 inches
• Display type: IPS LCD touchscreen
• Resolution: 1920 × 1080 pixels
• Aspect ratio: 16:9
• Brightness: 1400 nits
• Viewing angle: 160°
• Contrast ratio: 1000:1
• Colour standard: Rec.709
• HDMI input: HDMI 2.0
• HDMI output: HDMI 2.0
• Maximum supported signal: 4K at 60Hz
• Audio output: 3.5mm headphone jack
• Data connection: USB-C
• Storage: SD card
• 3D LUT: Supported
• Firmware updates: SD card
• Camera control: USB-C and Wi-Fi on supported cameras
• Monitoring tools: Histogram, RGB parade, vectorscope, waveform, false colour, zebra and focus peaking
• Anamorphic de-squeeze: Supported
• Onion Skin: Supported
• Gyroscope: Built-in
• Battery type: NP-F series
• DC power input: 12–18V / 2A
• USB-C power: 5V / 5A or greater
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Product dimensions: Approximately 165 × 91 × 28.5mm
• Product weight: Approximately 254g excluding accessories
• Body material: Aluminium

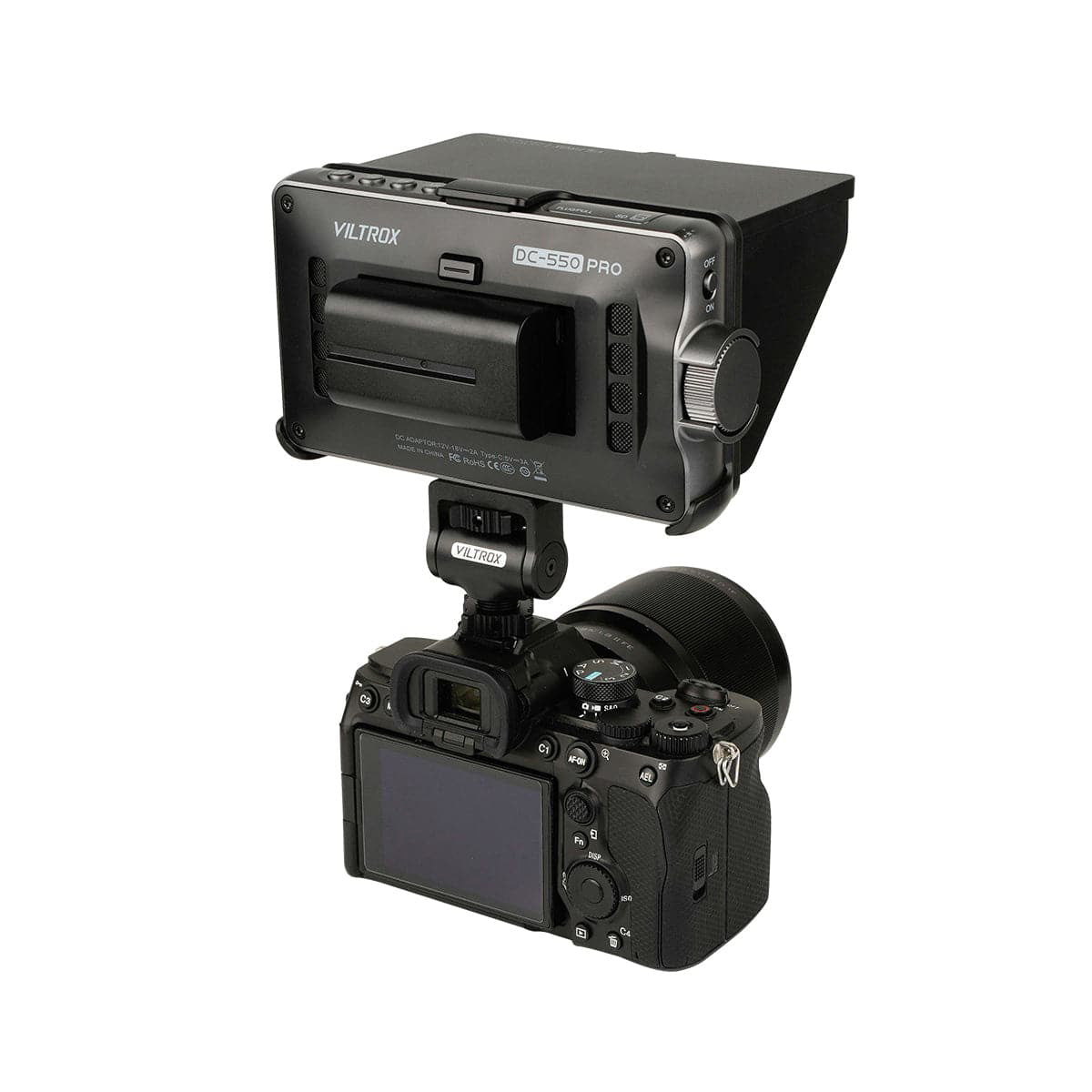

• Mounting: 1/4-inch mounting thread and hot shoe adapter

The manufacturer notes that specifications may change without prior notice.

Warranty:

1-Year limited local South African warranty

What's in the Box:

1 x Viltrox DC-550 Pro II 5.5-inch HD Camera Monitor

1 x Quick-release sun hood

1 x Hot shoe adapter

1 x HDMI cable

1 x User manual
